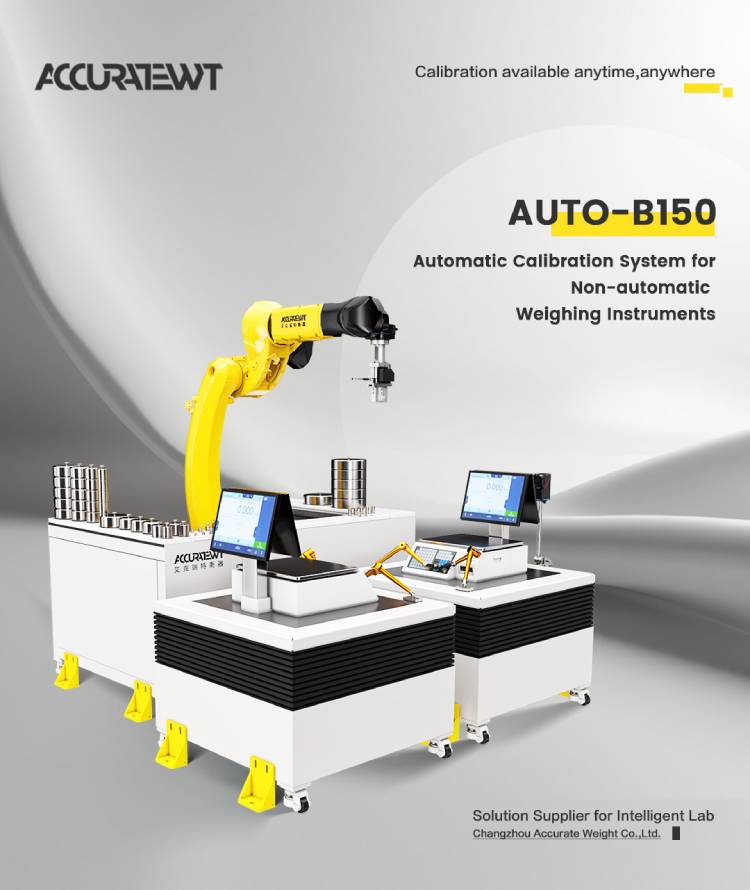

AUTO-B150
ACCURATEWT
 | Applicable for type approval, supervisory inspection, and calibration of non-automatic weighing instruments ranging from 3kg to 150kg |
The testing process conforms to JJF 1834-2020 'General Technical Requirements for Non-Automatic Weighing Instruments' |
G.W. | 68KG |

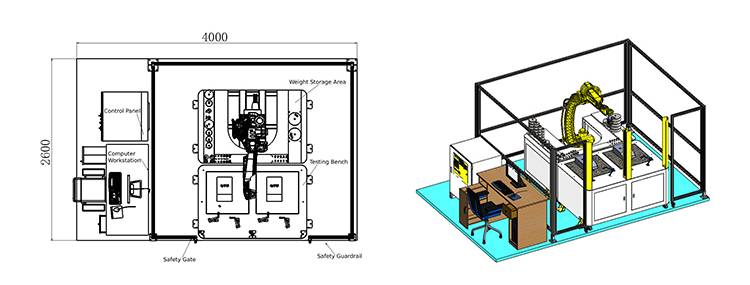

| Dimensions | 4000mm * 2600mm*2000mm |
Application | Applicable to electronic scales |
| Range | 3kg-150kg |
Applicable electronic scale sizes | Maximum external dimensions: 500 x 400 x 500 mm Minimum platform size: 190 x 160 mm |
Weight Configuration | Equipped with F2 class weights Combination mass: 0.1g - 150kg ,maximum single weights: 30kg(Customrized) Flicker weightsconfiguration: 15 pieces each of 0.1g, 0.2g, 0.5g, 1g, 2g, 5g |
Test Items | weighing performance (at room temperature, with 10 measurement points), off-center load, sensitivity, repeatability, zero return, creep, tilt (0.05% adjustable manually/automatically), tare weights, warm-up time, power voltage variation, range stability, and balance stability |
| Automatic Weight Loading | Utilizes a top-brand six-axis robot to automatically load standard weights, with the loading mechanism capable of gripping weights as small as 10mg. | Automated Testing | Conducts automated tests for 12 parameters |
| Automatic Data Processing | Automatically calculates, processes, stores, and outputs data according to set type approval/supervisory inspection/calibration parameters. | Gradual and Stable Loading and Unloading | In weighing performance tests and tare weighing performance tests, weights are gradually loaded and unloaded without any load decrease during loading or load increase during unloading. |
| Automatic Tilt Test Platform | The tilt test platform can achieve a maximum tilt of 50/1000 forward, backward, left, and right. | Visual Recognition | Features weights value recognition based on visual identification, compatible with common display types |
| Automatic Zero/Tare | Automatically presses the zero/tare button throughout the entire testing process. | ||
Can you conduct trials and tests to ensure machine performance? |
Yes. Our factory, covering 15,000 square meters, is equipped with the latest technology and machines ready for demonstration. We can conduct real-time demonstrations, process validation, and improvement studies for customers. |
How can I know if your machine can test my scale? |
Send us inquiry and inform us of your scale model and requirements. Our sales experts will respond in your language within 2 working days. If needed, our representatives will visit your factory to understand the machine's operation, demonstrate potential solutions, and discuss pros and cons. |
Do your machines support customization? |
Yes, we support customization. The Automatic Calibration System for Non-automatic Weighing Instruments can measure a range of 3kg-150kg. We can customize single-range weights libraries and small-range weights according to customer needs. The default weights library configuration is F2, which can be upgraded to F1 level. The system supports 12 testing projects including verification, supervision, and calibration, with functions adjustable based on requirements. |
How to place an order and how long for delivery? |
Send us inquiry tell about your needs . After signing the contract, the delivery will take 25 days, and installation and commissioning will be completed in 45 days for use. |
Can you arrange delivery to the customer's doorstep? What services do you provide? |
Our export and logistics department uses our established freight agent network to deliver our machines to the final destination. We will send technicians for equipment installation and commissioning, and provide a complete packing list, technical manuals, user manuals, and maintenance manuals. The installation and commissioning must be confirmed on-site by the buyer to ensure proper operation. |
What technical support and after-sales services do you provide? |
Warranty: The warranty period is 2 years from the acceptance date. After-sales service: During the warranty period, damaged parts are replaced free of charge, and technical support, labor, and installation fees are waived. After the warranty period, parts replacement is charged, but technical support, labor, and installation fees remain free. After-sales services must be provided by the seller's professionals. In case of equipment issues, the supplier must respond within 2 hours and dispatch personnel to the user's site within 48 hours to inspect and arrange repairs until the equipment operates normally. Downtime caused by the supplier should extend the warranty period accordingly. |
