| Quantity: | |
|---|---|
| Weight Class | F2 | Repeatability Test Points | 1500kg |
| Weight Material | 304 Stainless Steel / Steel with Nickel-Phosphorus Coating | Discrimination Threshold Test Points | 20kg、1500kg、3000kg |
| Zeroing Accuracy Test Points | 10kg | Rotation Test Points | 2400kg |
| Weighing Test Points | 20kg、500kg、1500kg、2000kg、3000kg | ||

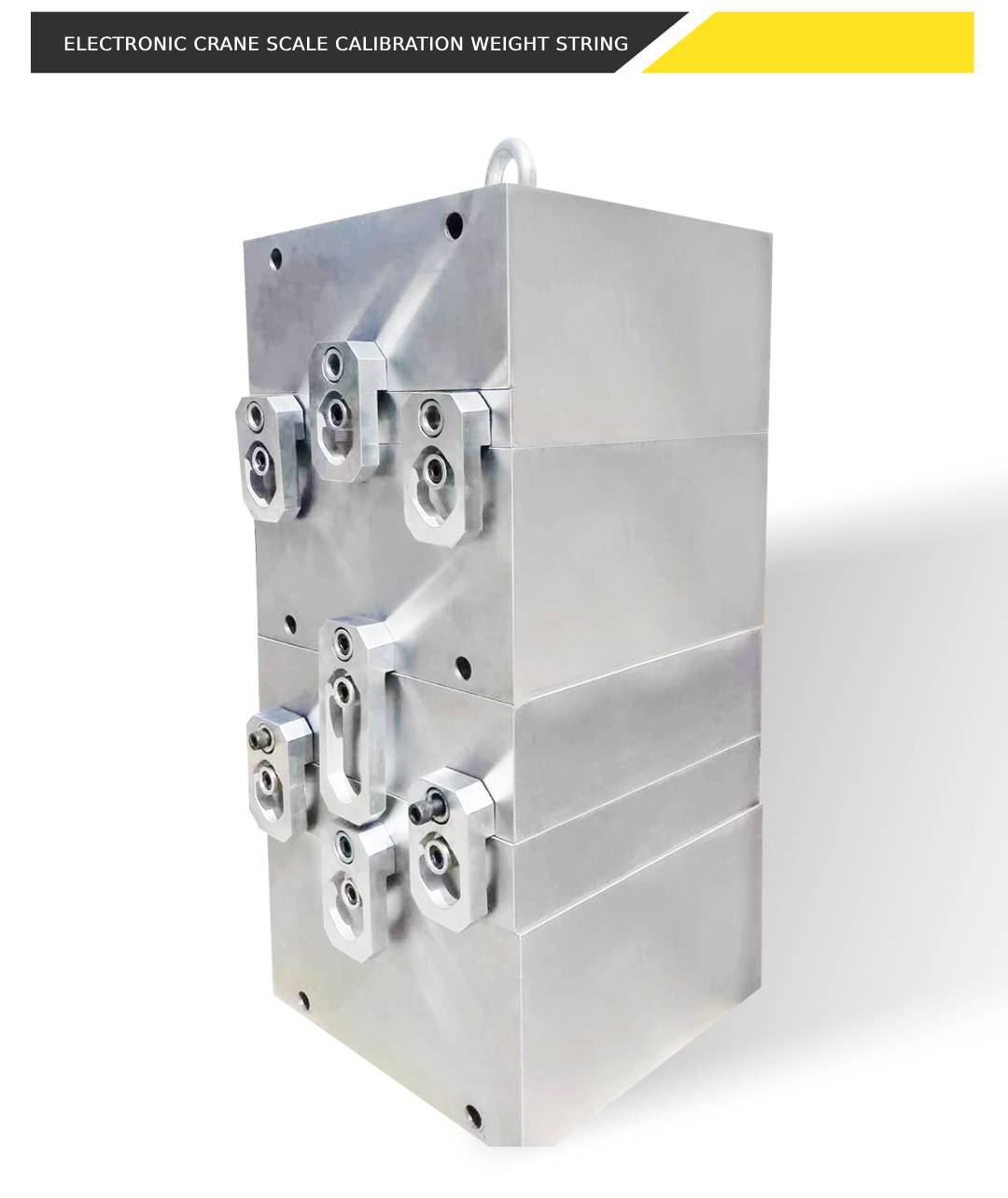

Modular Weight String Design | Customizable weights quantity to meet the testing requirements of electronic crane scales with different capacities (up to 100T). | Weight String Material | 304 Stainless Steel / 304 Stainless Steel Clad Steel / Steel with Nickel-Phosphorus Coating. |
Quick-Release Structure | Allows fast Movement of weights strings, facilitating regular inspections | Touchscreen HMI | Intuitive operation interface. |
Ultra-Strong Rigid Frame | Load capacity exceeds the testing weights by a safety factor of 5. | Control Modes | Automatic, semi-automatic, and manual options. |
Safety Features | Equipped with protective devices to prevent damage caused by scale breakage. | Testing Capabilities | Includes weighing, rotation, and repeatability tests. |
Scale Model Storage | One-time scale input, direct recall for subsequent tests. | One-Button Start | Ensures safer and more efficient testing processes. |
| Weight Class | F2 | Repeatability Test Points | 1500kg |
| Weight Material | 304 Stainless Steel / Steel with Nickel-Phosphorus Coating | Discrimination Threshold Test Points | 20kg、1500kg、3000kg |
| Zeroing Accuracy Test Points | 10kg | Rotation Test Points | 2400kg |
| Weighing Test Points | 20kg、500kg、1500kg、2000kg、3000kg | ||
Modular Weight String Design | Customizable weights quantity to meet the testing requirements of electronic crane scales with different capacities (up to 100T). | Weight String Material | 304 Stainless Steel / 304 Stainless Steel Clad Steel / Steel with Nickel-Phosphorus Coating. |
Quick-Release Structure | Allows fast Movement of weights strings, facilitating regular inspections | Touchscreen HMI | Intuitive operation interface. |
Ultra-Strong Rigid Frame | Load capacity exceeds the testing weights by a safety factor of 5. | Control Modes | Automatic, semi-automatic, and manual options. |
Safety Features | Equipped with protective devices to prevent damage caused by scale breakage. | Testing Capabilities | Includes weighing, rotation, and repeatability tests. |
Scale Model Storage | One-time scale input, direct recall for subsequent tests. | One-Button Start | Ensures safer and more efficient testing processes. |
